Woodworking 24 Tooth TCT Blade

Woodworking 24 Tooth TCT Blade

Diameter: 184mm*1.5*1.0*15.88*24T
Compatible Tools: handheld circular saws, corded circular saws, cordless circular saws, and common woodworking power tools
Applications: thick timber, framing lumber, OSB, MDF, laminated wood, softwood, and hardwood ripping
Send Inquiry
Chat Now
Description

Zhejiang Zhongcun Precision Cutter Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of woodworking 24 tooth tct blade in China, featured by quality products and good service. Welcome to wholesale CE approved woodworking 24 tooth tct blade from our factory. Contact us for customized service and OEM service.



Features



  • Power Tool Compatible Design
    The 184mm diameter and 15.88mm bore are suitable for a wide range of handheld circular saws and woodworking power tools. This blade is designed for jobsite cutting, workshop sizing, and framing lumber ripping, providing stable performance on both corded and cordless saws.
  • Anti-Vibration Blade Body for Long Rip Cuts
    The 65Mn high-carbon steel blade body improves stability during continuous cutting. When ripping thick timber over a long distance, the stable plate helps reduce vibration, side movement, and cutting line deviation.
  • 24T ATB Tooth Geometry for Efficient Chip Removal
    The 24-tooth configuration is built for fast ripping, while the ATB / BC tooth design provides strong biting performance in wood. Larger chip space helps remove sawdust quickly and reduces clogging and heat build-up during thick timber cutting.
  • Teflon Anti-Stick Coating for Lower Cutting Resistance
    The Teflon coating helps reduce resin build-up, wood dust adhesion, and friction from wet or resinous timber. It allows the blade to feed more smoothly during repeated rip cuts.
  • Made for Thick Timber, Framing Lumber, and Jobsite Cutting
    This 24T TCT blade is suitable for thick boards, framing lumber, OSB, MDF, laminated wood, and general solid wood ripping. It is especially suitable for buyers who need cutting speed, blade stability, and power tool compatibility.



parameter



Diameter

184mm(7-1/4")

Kerf / Tip thickness

1.5mm

Plate thickness

1.0mm

Bore

15.88mm (Custom)

Tooth Count

24T

Coating

Teflon anti-stick

Tooth Grind

ATB(BC)

Max RPM

10000RPM

Cutting Materials

OSB,plywood, MDF, laminated timber



DETAILS



A Stable 24T Wood Blade for Power Tools



The key advantage of this 184mm 24T TCT blade is not only speed, but stable cutting during long rip cuts in thick timber. For handheld circular saws and jobsite power tools, blade stability under load is especially important.
The combination of a 65Mn blade body, 24T ATB tooth geometry, and Teflon coating helps reduce vibration, lower cutting resistance, and maintain smooth feeding in thick timber, framing lumber, and solid wood boards.
For wholesalers, private-label brands, and power tool accessory buyers, this specification is suitable for 184mm circular saws, 7-1/4 inch tool systems, and woodworking power tool blade programs.

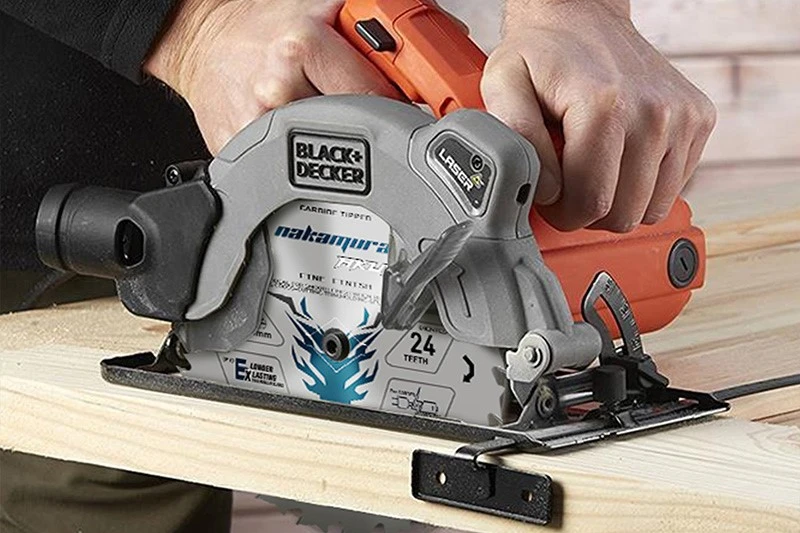

184mm 24T TCT woodworking blade for circular saw power tools
65Mn body circular saw blade for framing lumber and solid wood boards

Anti-Vibration Body Design



During long rip cuts, the blade can be affected by changes in wood density, unstable feed pressure, or power fluctuation from the tool. This blade uses a stable 65Mn body structure to help the blade run straighter during continuous cutting.
For thick boards and framing lumber, a stable blade body helps reduce cutting line drift and improves control when used with power tools.

Tungsten Carbide Tipped Teeth



TCT stands for Tungsten Carbide Tipped, meaning the cutting teeth are tipped with carbide for improved wear resistance and impact resistance compared with standard steel teeth. This makes the blade more suitable for thick timber, framing lumber, and continuous rip cutting.
Nakamura can adjust carbide tip size, tooth geometry, brazing process, and surface coating according to customer requirements, helping this 24T TCT blade better match different power tools and wood cutting habits in target markets.

Tungsten Carbide Tipped Teeth
Application
Application Materials:
Thick timber, framing lumber, construction wood, OSB, MDF, laminated wood, softwood, hardwood, jobsite lumber sizing, and workshop ripping.
Compatible Tools:
Handheld circular saws, corded circular saws, cordless circular saws, woodworking power tools, and 7-1/4 inch circular saw systems.
